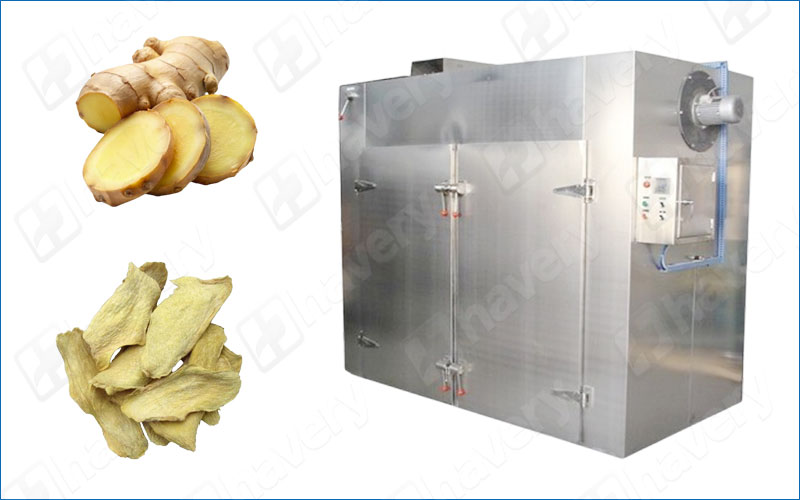

Stainless Steel Ginger Dryer Machine With Hot Air Circulation System

描述

The Stainless Steel Ginger Dryer Machine with Hot Air Circulation System is an industrial device specifically designed for dehydrating ginger products such as slices, chunks, and shreds. Constructed entirely of stainless steel, it features a hot air circulation system that ensures uniform air flow and temperature control within the drying chamber. Suitable for ginger powder production lines, spice factories, medicinal herb factories, and food factories, this machine is a key component of the ginger drying process. It efficiently, safely, and evenly dehydrates ginger from a high-moisture state to the target moisture content, while maximizing the preservation of the ginger’s aroma and active ingredients.

Ginger Drying Process

The core drying process of this ginger dryer is as follows:

Material Feeding / Uniform Placement
Ginger (slices, shreds, chunks, etc.) is pre-treated and evenly laid out or placed on trays, mesh belts, or drying carts before entering the drying chamber.

Heat Source Heating / Air Supply
Air is heated by electric heating, steam heating, gas/oil heaters, or hot air furnaces, generating hot air as the drying medium.

Hot Air Circulation / Forced Convection
The machine is equipped with a high-temperature, heat-resistant circulating fan that continuously circulates hot air within the drying chamber, penetrating the ginger and removing moisture vapor. Moisture is discharged through a moisture removal duct or exhaust system. The enclosed structure minimizes heat loss. This hot air circulation method improves heat utilization and drying uniformity.

Temperature / Air Speed ​​/ Time Control
The equipment is equipped with a temperature control system, air volume adjustment, and timing control, allowing the drying curve to be set based on parameters such as ginger thickness, moisture level, and target moisture content.

Discharge / Cooling
After drying, the ginger is removed or discharged via a conveyor system. There may also be designs for cold air or waste heat recovery, allowing for slow cooling to prevent browning.

This hot air circulation drying method offers a balance of speed, uniformity, and energy efficiency, making it the mainstream choice for ginger drying.

Ginger Dryer Machine Features

All-stainless steel construction (food-grade SUS304/SUS316)
Product-contact components, linings, trays, and hot air ducts are all made of stainless steel, offering corrosion resistance, easy cleaning, and compliance with hygiene standards.

Hot Air Circulation System/High-Temperature Heat-Resistant Blower
Equipped with a circulation fan, hot air recirculation system, and air duct design, this ensures even hot air distribution and strong penetration.

Excellent Thermal Insulation/Insulation Design
The drying chamber sidewalls and ceiling are filled with high-efficiency insulation materials (such as rock wool and aluminum silicate wool) to minimize heat loss and improve thermal efficiency.

Flexible Heating Source Compatibility
Supports a variety of heating sources: electricity, steam, hot air furnace, gas/oil, and more, configured to meet site energy requirements.

Ginger Drying Machine Advantages

Uniform Drying / Stable Temperature Field
Hot air circulation + zone control ensures uniform heating of the ginger, preventing areas from being over-dried or under-dried.

High Efficiency / Energy Saving
The closed-loop structure reduces heat loss, while the insulation design and return air system improve heat utilization and reduce energy consumption.

Low Ginger Breakage / Excellent Quality
The hot air method is gentle and frictionless, effectively preserving the ginger’s shape, color, aroma, and active ingredients.

Flexible Operation / Easy Scalability
Adjustable parameters such as temperature, air flow, and time are available to accommodate different thicknesses, moisture contents, and ginger types. The equipment can be expanded to meet production capacity needs.

Easy Cleaning / Maintenance
The stainless steel structure + modular tray, heating, and fan design facilitate daily cleaning and maintenance.

Ginger Dehydrator Machine Benefits

Output of high-quality dried ginger products
Uniform drying, excellent color, aroma preservation, and effective ingredient retention contribute to improved quality of end-products such as ginger powder and dried ginger slices.

Reduced unit costs / energy savings
Energy-saving design, heat recovery, and improved efficiency reduce energy consumption per unit of moisture removal, increasing profit margins.

Reduced losses / Improved yield
Low breakage and uniform drying increase yield, reducing defective products and rework caused by drying problems.

Flexible adaptation to varying production capacities and raw material specifications
Adjustable parameters and a modular design make this equipment suitable for small, medium, and large ginger drying projects.

Long-term reliable operation / manageable costs
High-quality materials, durable fans and electrical components, and easy-to-maintain design ensure a longer equipment life and lower operating costs.

Conclusion

In summary, the Stainless Steel Ginger Dryer Machine with Hot Air Circulation System is a high-performance machine designed for ginger drying. Its core features include an all-stainless steel construction, a hot air circulation system, excellent thermal insulation, and adaptability to multiple heat sources. It offers significant advantages in efficiency, drying uniformity, energy efficiency, product quality protection, and operational flexibility. Customers using this machine can obtain high-quality dried ginger, reduce energy consumption and losses, and improve production line efficiency and profit margins.

If you would like to learn more about this ginger dryer’s detailed specifications, capacity options, custom configurations, a live video demonstration, or request a quote, please contact us online. We will provide one-on-one technical support and selection advice to help you build an efficient, high-quality ginger drying production line.
