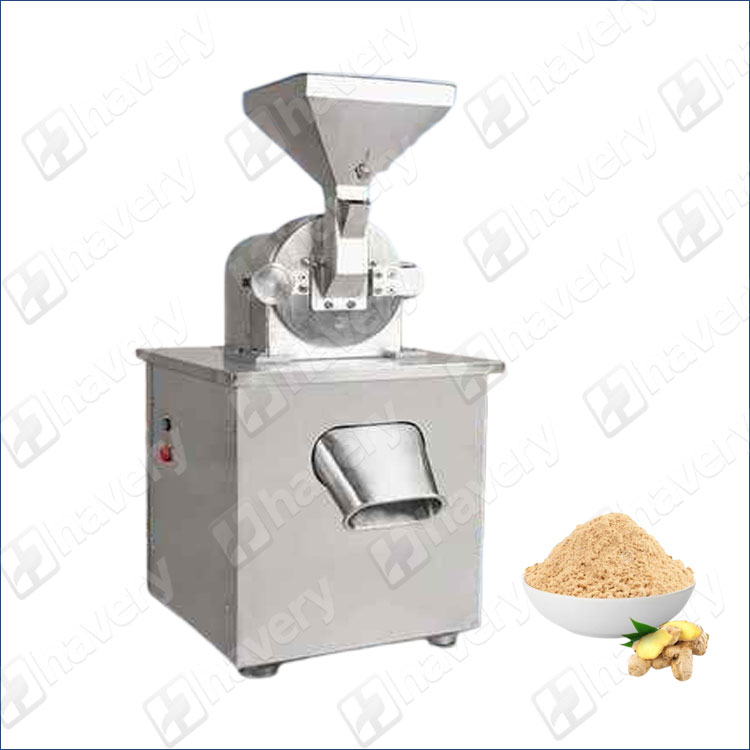

Industrial Dry Ginger Powder Grinder Machine For Spice Grinding

描述

The Industrial Dry Ginger Powder Grinder Machine for Spice Grinding is a machine specifically designed for efficiently crushing, grinding, and pulverizing dried ginger (dehydrated fresh ginger, in chunks or slices). It not only processes dried ginger into powder of the desired quality (e.g., 10–120 mesh or finer), but also can grind other dried spices such as chili peppers, turmeric, onions, spice roots, and herbs. This machine is widely used in spice processing plants, food ingredient factories, pharmaceutical plants, Chinese herbal medicine plants, and seasoning plants. It is designed to achieve high-yield, high-precision, and stable dry ginger powder grinding, while preserving the aroma and active ingredients of the ginger powder.

Ginger Powder Machine Working Principle

This dry ginger crusher is a dry-type pulverizing machine. Its basic operating principle can be summarized as follows:

Material Feed: Dried ginger raw materials (usually dried ginger chunks, slices, or granules) are fed into the pulverizing chamber via a hopper, feeder, or screw conveyor system.

Primary Crushing/Coarse Crushing/Fine Crushing: Within the pulverizing chamber, a high-speed rotating rotor (with blades, hammers, or toothed discs) moves against a stationary blade, toothed disc, or grinding disc at high speed. The ginger chunks are broken and ground through shearing, impact, grinding, collision, and friction.

Screen Grading/Powder Discharge: The ground material passes through a screen installed within the chamber (with a selectable mesh size, typically 10–120 mesh). The finer particles pass through the screen and are discharged via airflow or gravity discharge, while the coarser particles remain in the chamber for further grinding.

Airflow/Air Assist: Typically, the machine uses one or more stages of airflow or air assist to remove the powder, cool it, reduce heat buildup, and prevent clogging of the screen. Some equipment may also include a water cooling system or outer shell cooling structure to control the grinding chamber temperature and prevent high temperatures from damaging the aroma or active ingredients of ginger. For example, some water-cooled ginger powder machines use a water cooling structure to reduce the grinding chamber temperature, preventing temperature increases from damaging the flavoring ingredients.

Discharge/Powder Collection: The final ginger powder is transported through the discharge outlet to downstream packaging, storage, or mixing systems. The entire process is a “dry waterless” grinding process, requiring no liquid addition.

This operating method ensures that the ginger powder is dry, moisture-proof, and retains its aroma. It is also relatively simple to operate and maintain.

Ginger Powder Grinder Machine Features

High-Precision Adjustable Screen / Grading Structure
The machine is equipped with replaceable screens (e.g., 10–120 mesh or finer), allowing for flexible adjustment to customer ginger powder coarseness and fineness requirements.

High-Speed ​​Rotor + Multi-Stage Grinding Design
A well-designed rotor blade, hammer, or toothed disc, combined with a fixed blade, delivers multiple impact and shearing cycles, ensuring thorough grinding of the dried ginger in a single pass. Some high-end equipment even integrates coarse, medium, and fine grinding modules into a single unit.

Air Cooling / Air Flow / Cooling Structure
Internal airflow channels are designed to remove dust and cool the powder using high-speed airflow. For demanding applications, a water-cooling jacket or cooling lines may also be included for temperature control.

Food-Grade Stainless Steel Construction / Easy-Clean Design
The entire machine (or the surfaces contacting the product) is constructed of 304 / 316 stainless steel, offering a smooth surface that complies with GMP and food hygiene standards. The structural design allows for easy disassembly, cleaning, and maintenance.

High Throughput / High Capacity / High Efficiency
The equipment can be designed with processing capacities ranging from tens of kilograms per hour to hundreds of kilograms or even tons per hour, meeting the needs of small, medium, and large dried ginger processing plants.

Ginger Powder Grinding Machine Advantages

Improved Ginger Powder Fineness and Uniformity
The adjustable screen and multi-stage grinding structure ensure a more stable and uniform final ginger powder particle size, reducing coarse particles and return rate, and improving product quality.

Excellent Retention of Aroma and Active Ingredients
Airflow or water cooling controls the grinding temperature, minimizing the damage to gingerols, shogaols, and volatile oils caused by high temperatures, thereby better preserving the aroma and active ingredients.

High Efficiency / Low Energy Consumption
High-speed grinding combined with a well-designed airflow path ensures high throughput per unit time while reducing power consumption and material residence time in the grinding chamber, thereby improving production efficiency.

Easy Operation, Cleaning, and Maintenance
The modular design, easy disassembly, and stainless steel surface make it easy to clean, making it suitable for food, spice, and pharmaceutical applications. Cleaning time is minimized, and downtime is minimal.

High Adaptability / Versatility
Although designed for dried ginger, this machine is also compatible with a variety of dried spices (such as chili peppers, turmeric, onion powder, various dried roots, and herbs), allowing customers to use one machine for multiple purposes and maximize their return on investment.

Spice Ginger Powder Grinder Benefits

High-quality ginger powder products
Finer, more uniform, better-preserved aroma, and reduced impurities make the final product more easily accepted in the market and increase sales margins.

Improve production efficiency & reduce unit costs
High hourly output, minimal downtime, and easy cleaning and maintenance, resulting in low power consumption and labor costs per unit of production capacity.

High return on equipment investment
Excellent versatility (compatible with a variety of spice grinders), reducing reinvestment; low maintenance costs and low failure rates, keeping lifecycle costs manageable.

Enhanced hygiene and safety / brand reputation
Meets food, spice, and pharmaceutical-grade cleanliness standards, reducing the risk of cross-contamination and making it easier for customers to obtain quality certifications (such as HACCP, GMP, FDA, and ISO) in importing countries or high-end markets.

Stability and reliability / long-term operation
High-quality materials and structural design make the equipment more reliable and durable, reducing the risk of downtime and damage, and ensuring stable operation of customers’ production lines.

Conclusion

The Industrial Dry Ginger Powder Grinder Machine for Spice Grinding is a high-performance machine designed specifically for crushing and grinding dry ginger. It features advanced features such as an adjustable screen, multi-stage high-speed grinding, airflow/cooling assistance, and stainless steel construction. These advantages deliver high fineness, high efficiency, excellent aroma retention, easy operation and maintenance, and strong versatility. This allows customers to obtain high-quality ginger powder, reduce production costs, improve return on investment, and enhance brand credibility and production reliability. Furthermore, multiple suppliers have provided practical examples demonstrating fineness, capacity, and cooling design, providing technical support and trust.

If you would like more detailed model specifications, capacity data, customized options, a quote, or a video demonstration of this dry ginger grinder, please contact us online today. We will provide comprehensive technical support and one-on-one customization services.
